WLC WebUI to CLI Mappings – Part 2 WLAN TAB => AP Groups

On By haydnandrewsIn CCIEW, WebUI to CLI, Wireless, Wireless Controllers

Second installment of this multi part series mapping out the Cisco WLC WebUI to the CLI commands. Hope your enjoying it, have quite a few more lined up, and busy compiling the rest of the commands.

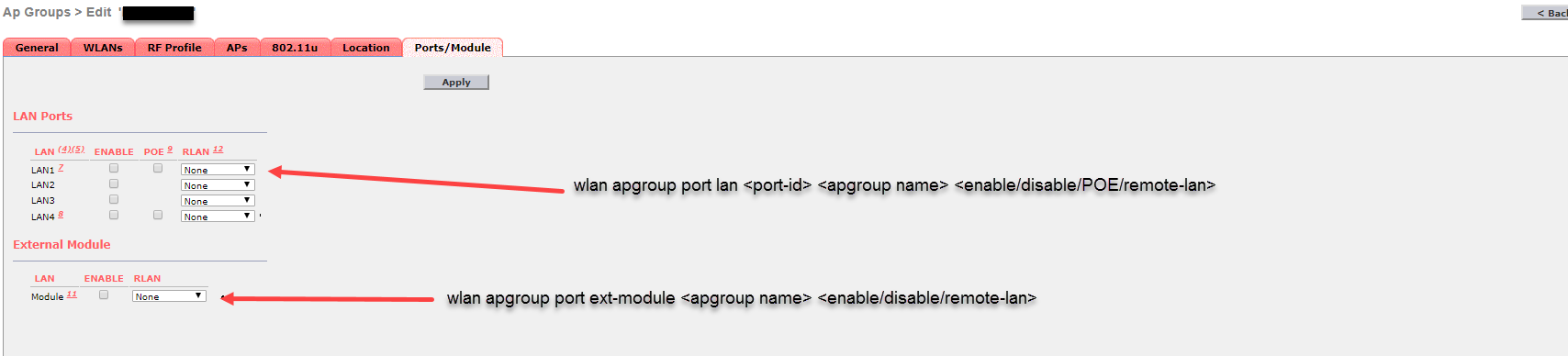

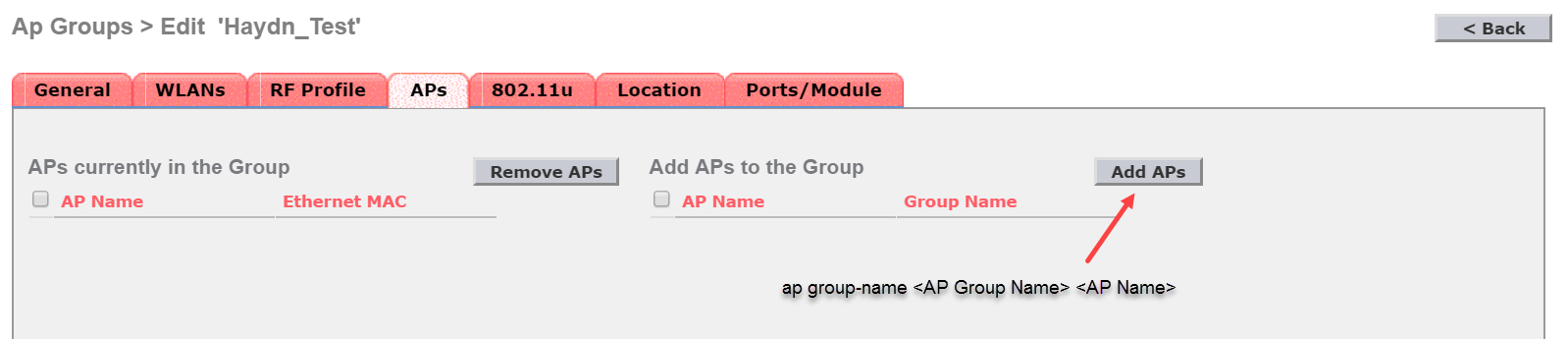

NOTE: For some of the screenshots I have modified the layout to make it easier to add the CLI commands next to the WebUI options. Also some screenshots were taken from a production WLC so I have blacked out some field values. These options/ commands screenshots and commands were from 8.5.x train of the WLC code

Creating an AP Group



I have yet to find any CLI commands for the location TAB. Best I have found is:

https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-7/config-guide/b_cg87/location_services.html
