WLC WebUI to CLI Mappings – Part 3 Controller TAB

On By haydnandrewsIn CCIEW, WebUI to CLI, Wireless, Wireless Controllers

Third installment of this multi part series mapping out the Cisco WLC WebUI to the CLI commands. Hope your enjoying it so far.

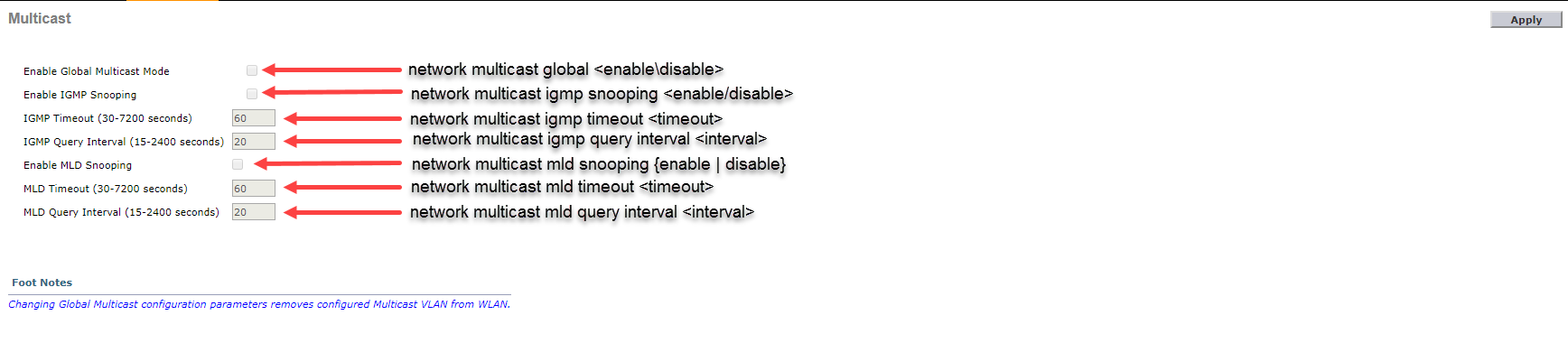

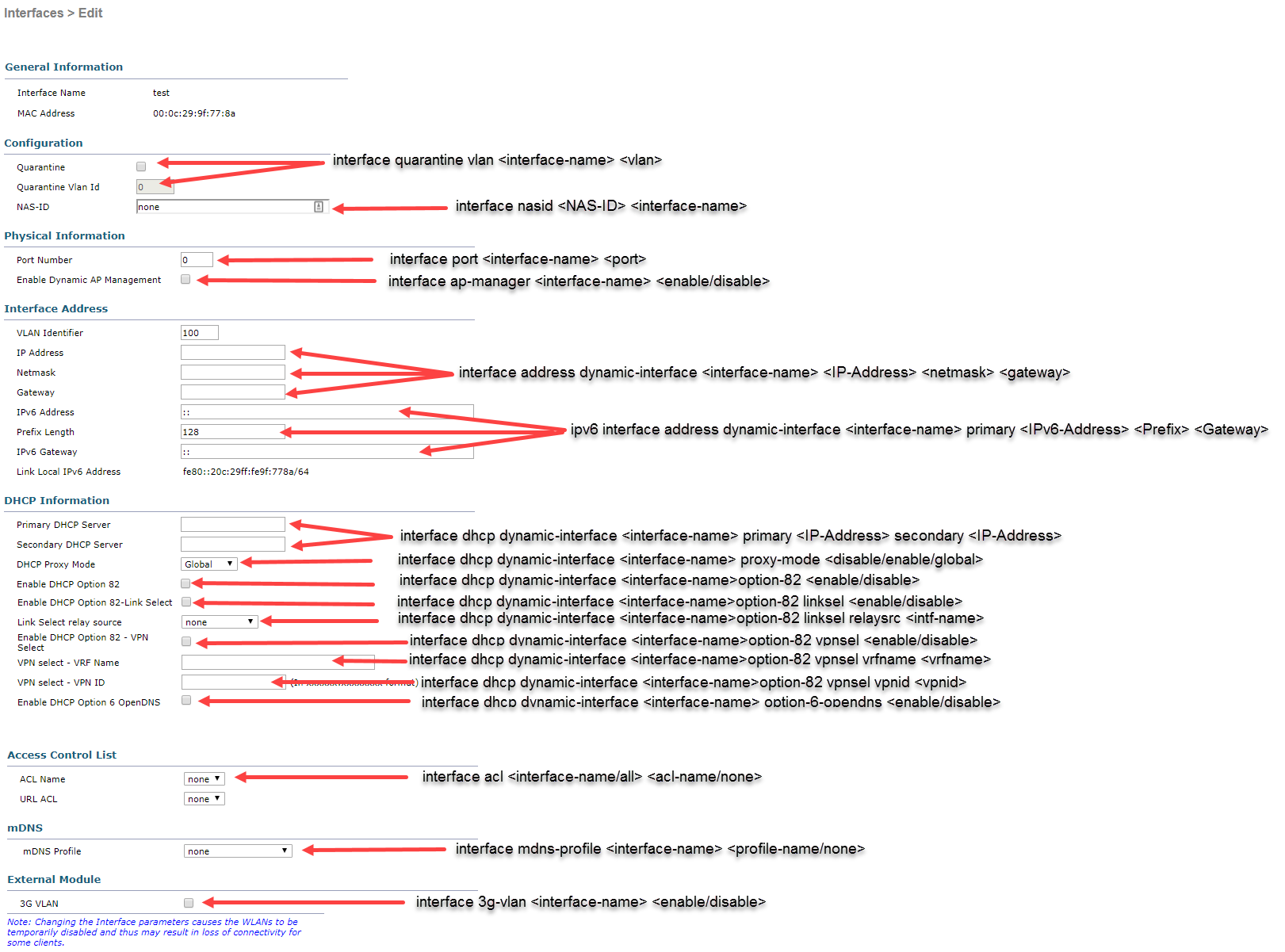

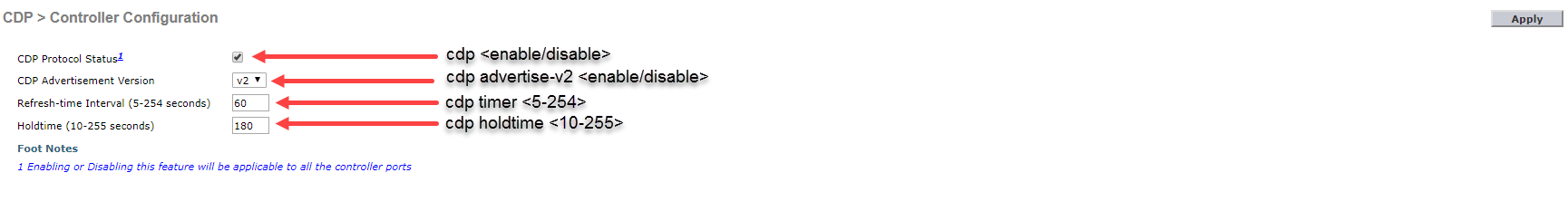

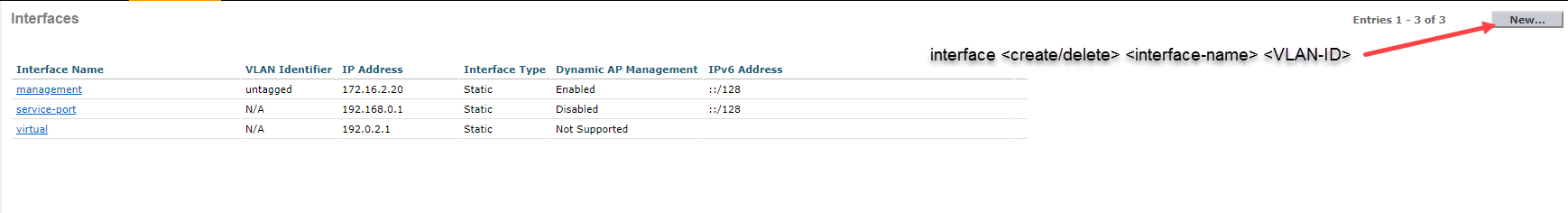

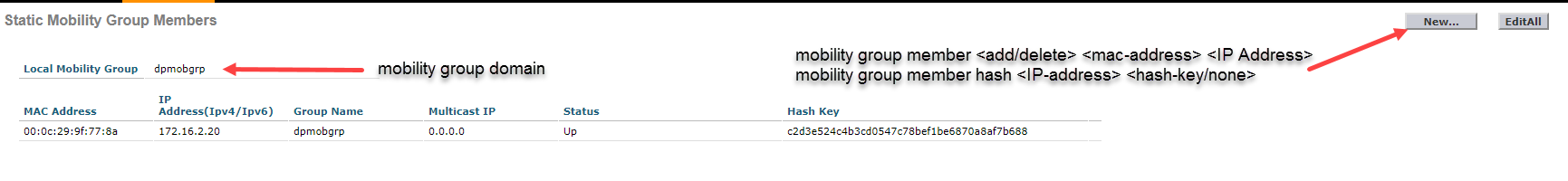

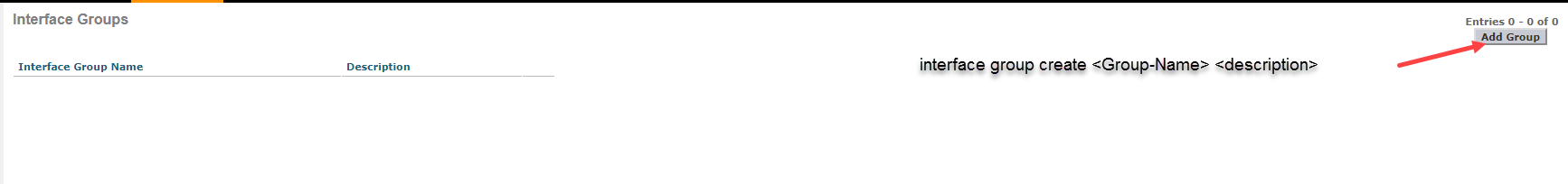

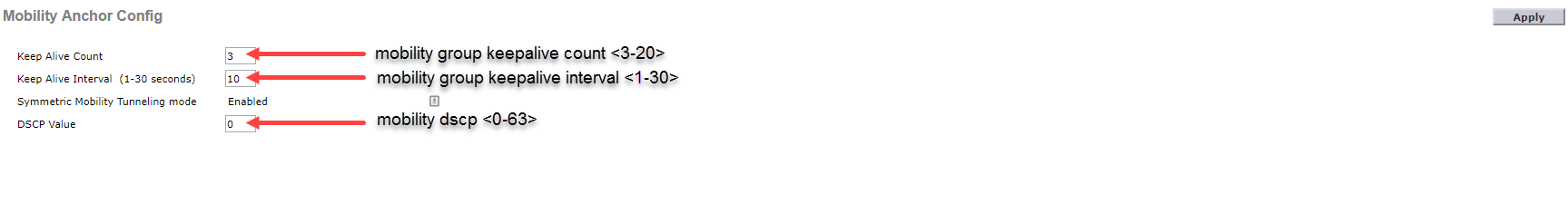

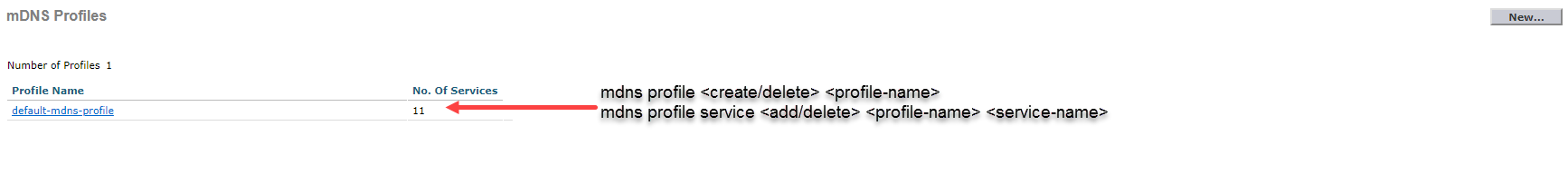

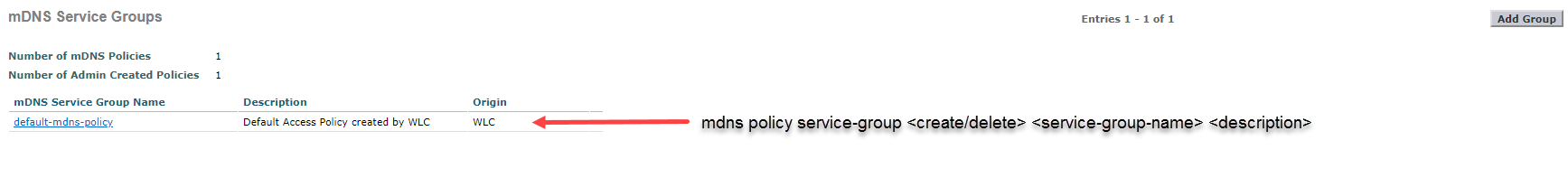

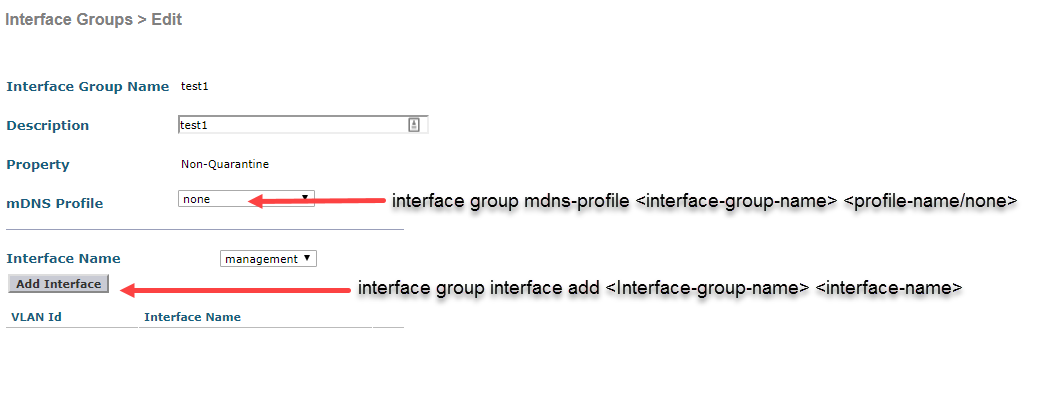

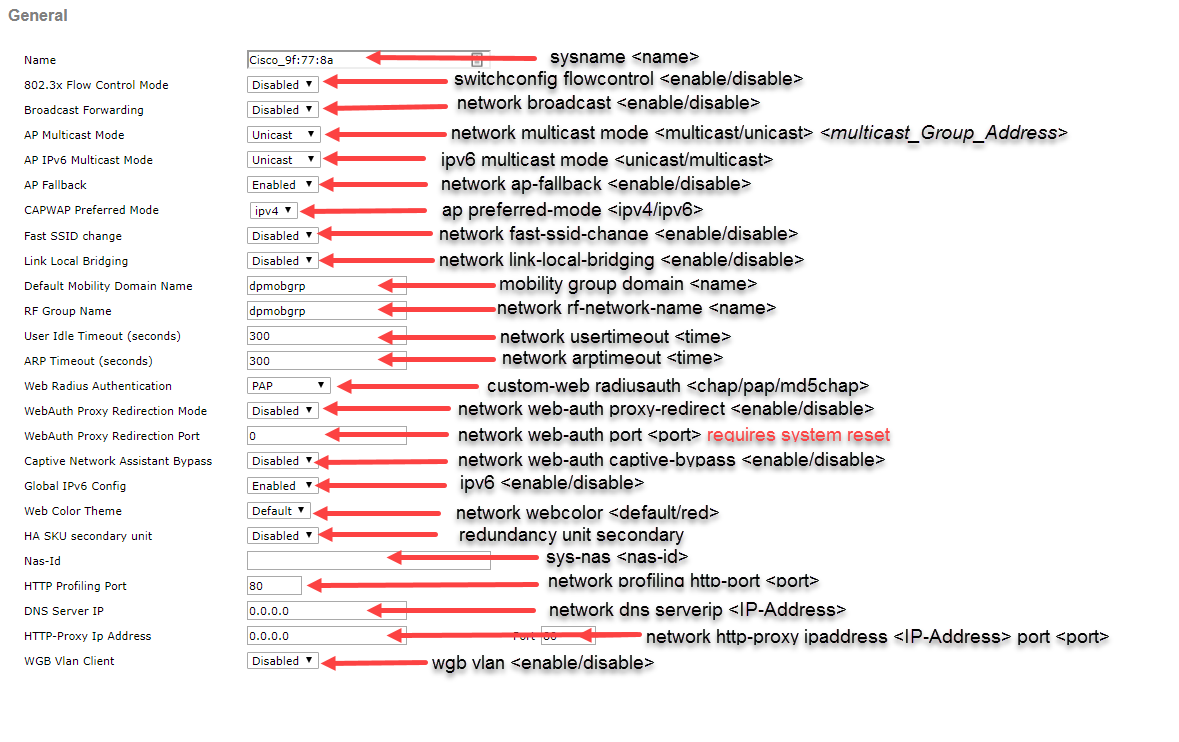

NOTE: For some of the screenshots I have modified the layout to make it easier to add the CLI commands next to the WebUI options. Also some screenshots were taken from a production WLC so I have blacked out some field values. These options/ commands screenshots and commands were from 8.5.x train of the WLC code
