Using REST API to delete APs from Prime

I had a requirement to delete multiple access points that had been decommissioned from a network, but sitting there manually selecting them and deleting them would be painful.

I decided to utilise the Prime Infrastructure 3.X published REST APIs to see if I could do this. The API Guide is here. (You Might need to sign up for a Cisco Developer Account which is free)

The API that I found that could do it was:

https://PRIME IP/webacs/api/v1/op/apService/deleteAp

Unfortunately currently the REST API only allows you to delete APs utilising their name

Now as I am only going to need to run this as a one off I utilised Chrome’s Postman App.

The API is a PUT command so I select PUT, then add the URL (With Primes IP/DNS) and select Authorization > Basic and enter your Prime User Credentials and press “update request” NOTE: I found using the root account caused less issues if deleting heaps of APs as normal users had API call limits.

Screen Shot 2016-09-28 at 9.59.59 AM.png

Then you select body and select the raw radio button, select XML (application/xml) from the drop down list and enter the following code

Single AP Payload:

<?xml version="1.0" encoding="UTF-8" ?>
<apCandidate>
<apNames>
<apName>AP NAME</apName>
</apNames>
</apCandidate>

Multiple AP Payload:

<?xml version="1.0" encoding="UTF-8" ?>
<apCandidate>
<apNames>
<apName>AP NAME</apName>
<apName>AP NAME</apName>
</apNames>
</apCandidate>

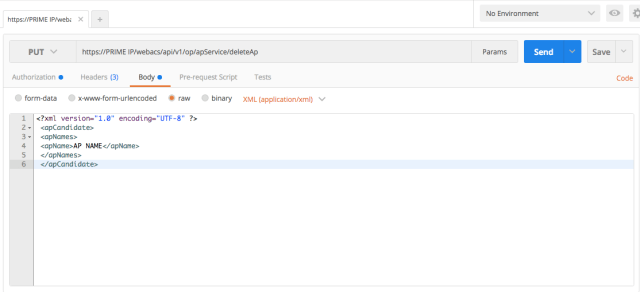

screen-shot-2016-09-28-at-10-00-46-am
Next you press the send button and all the AP’s are deleted from Prime.
